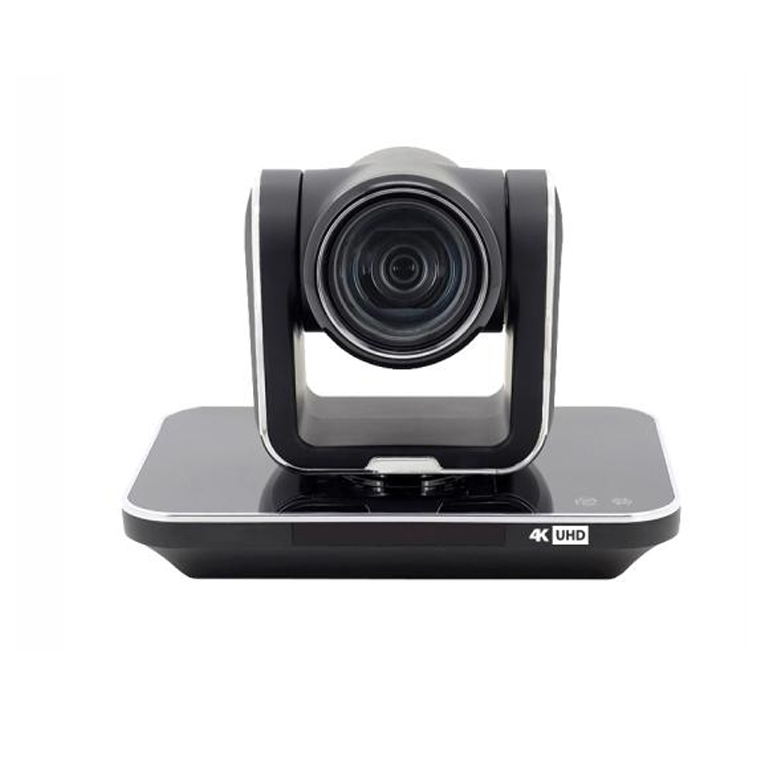

NX- UHD320 Broadcast-grade ultra-high definition PTZ camera

Camera and lens parameters
Image sensor : 1 / 2.5 - inch CMOS sensor
Effective pixels : Approximately 8.5 million
Video format  : 2160@30/29.97,25; 1080@60/59.94,50,30/29.97,25; 1080i@60/59.94,50; 720P@60/59.94,50
Lens zoom : 12x optical magnification
Focal length : f = 4.4mm (width) ~ 52.8mm (distance)
Horizontal : Approximately 80.5° (width)
Aperture : F1.6~F3.5
Minimum : 1.6 lux
Digital Noise : 2D & 3D Digital Noise Reduction
White Balance : Automatic, One-click setup, Manual
Focus mode  : Manual/Automatic
Aperture mode : Manual/Automatic
Backlight  : switch
Wide dynamic : Off/Dynamic Level Adjustment
Screen : Brightness, chroma, saturation, contrast, sharpness
Interface parameters
Video interface  : HDMI, 3G-SDI, IP networking, USB 3.0
Video : H.265, HEVC
Control : RS232 -C, RS422, RS485 , IP
Control  : VISCA , SONYVISCA, PELCOP/D, ONVIF
Communication : 2400/4800/9600/19200
Audio input : Dual-channel 3.5mm line input
audio   : ACC, MP3, PCM
Network  : 100M Ethernet port (10/100BASE-TX), supports network control
Network  : RTSP, RTMP, ONVIF, GB/T28181
Power interface : DC-038 Power Socket (DC12V)
Gimbal parameters
Horizontal  : -178°~+178°
Pitch and  : -30°~+90°
Horizontal  : 0.01° to 180°/s
Pitch speed : 0.01° to 120°/s
Preset number  :  A maximum of 255 can be set.
Other parameters
power adapter : Input AC100V~AC240V, Output DC12V/2A
Input voltage  : D V 12V
Power  : 12W (maximum)
Storage  :  -10°C to +60°C / 20% to 95%
Operating  :  -10°C to +50°C / 20% to 80%
Usage  : indoor
Random :  Power adapter, RS232 adapter cable, 2 RS485 terminals, USB 3.0 data
Attachments :  cable, remote control, instruction manual, warranty card.
Optional  : Wall/Ceiling Mount Bracket
