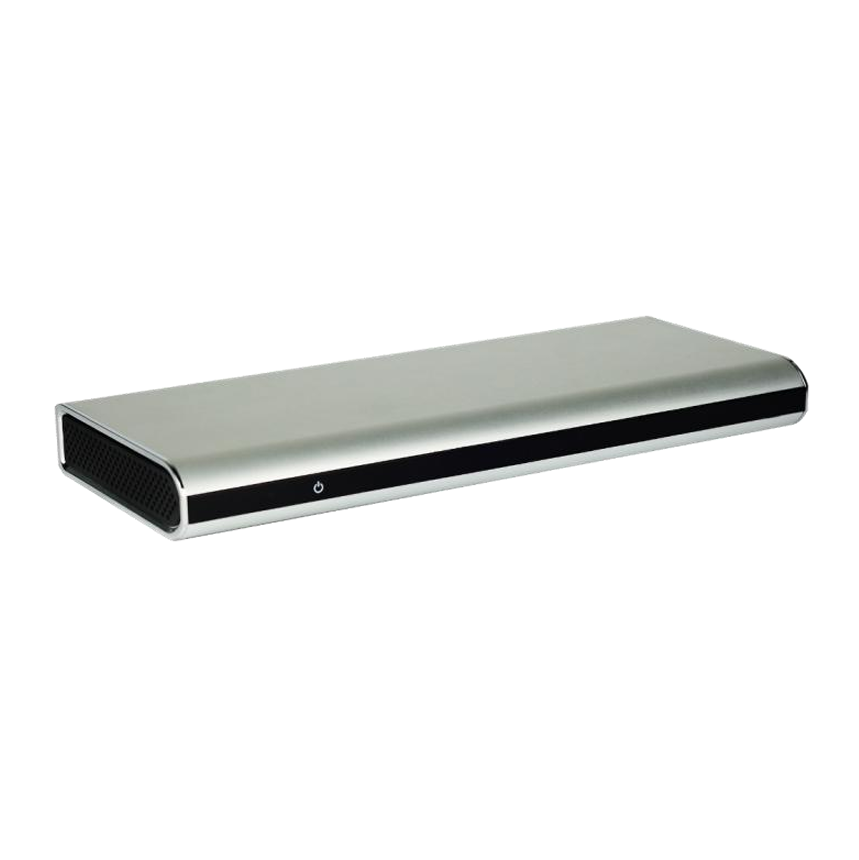

KS200 Ultra-HD Conference Terminal

System Accessory:
Accessory Contents: • HD codec x 1
                    • IR remote control x 1
                    • Power adapter x 1
                    • AC cable x 1
                    • HDMI cable (1.5m) x 2
                    • User Mannual (Quick Start Guidance and Installation Guidance) x 1
Standard & Protocols:
Multi-media:
Frame Protocols: ITU-T H.323, IETF SIP
Video Standards and Protocols: H.261, H.263, H.263+, H.263++, H.264, H.264 High Profile, H.265
Audio Standard and Protocols: G.711, G.722, G.722.1*, G.722.1C*, AAC-LD, G.726, SILK
Dual Stream Protocols: ITU-T H.239, BFCP
Other Standard: H.221, H.224, H.225, H.235, H.241, H.245, H.281, H.350, H.460, T.140, DTMF
Network Standards and Protocols: TCP/IP, DHCP, SSH, HTTP, HTTPS with SSL/TLS, RTP, RTCP, RFC3261, RFC3264, RFC2190, RFC3407,
RFC2833, RFC4585(RTP/AVPF), SNTP, ARP
Video Features:
Active Image Resolution: • 4KP30, Guaranty bandwidth: 2048Kbps
1080p, Guaranty bandwidth: 512Kbps
• 720p, Guaranty bandwidth: 384Kbps
Content Video Resolution: • Input: VGA (640x480), SVGA (800x600), XGA(1024x768), WXGA(1280x768), WXGA (1280x800), 1280x960, SXGA(1280x1024), 1360x768, 1366x768, 1440x900, 1600x900, 720p(1280x720), 1080p(1920x1080), 3840x2160
 • Encoding/Decoding: 800x600, 1024x768, 1280x1024, 1280x720, 1920x1080, 3840x2160
• Output: 800x600, 1024x768, 1280x1024, 1280x720, 1920x1080, 3840x2160
Dual Stream: Dual 4KP30
Other Video Features: PiP (Picture in Picture),PoP (Picture outside Picture)
Audio Feature:
Audio Features: • AEC (Acoustic Echo Cancellation)
                • AGC (Acoustic Gain Control)
                • ANS (Acoustic Noise Suppression)
                • Lip synchronization
Bandwidth:
IP: 64kbps ~ 8Mbps
Interfaces:
Audio Input (5 In): 1 x 3.5mm Line in,
                    1 x XLR microphone in,
                    1 x RJ45 DMIC,
                    1 x USB,
                    1 x HDMI Audio In
Audio Output (4 Out): 1 x 3.5mm Line out,
                      2 x HDMI Audio out,
                      1 x USB
Image Input (4 In): 2 x HDMI
                    1 x USB
                    1 x VIDEO( POE TOUCH )
Image Output (2 Out): 2 x HDMI (3xHDMI out Optional)
USB Port: 2 x USB3.0 (Support USB flash drive, USB microphone, etc)
Network: 2 x RJ45: 10/1000 Base-T, Touch/DMIC
         1 x Wireless : 802.11 b/g/n Wi-Fi (Optional)
Other: OLED display IP and registration number
       AI voice tracking
       AI automatic marqueeping
       AI noise reduction
       Speech-to-text
       Wireless projection
       4K dual-screen display
General Feature:
Size: • Terminal Size:348mm x 148mm x 37mm
      • Package Size:413mm x 332mm x 130mm
      • Net Weight:1.4Kg
      • Gross Weight:2.2Kg
Electrical Feature: • Operating Voltage: DC 12V
                    • Maximum Power Consumption:54W
Enviroment Requirement: • Temperature:0℃ ~ 40℃ (Working status), -40℃ ~ 70℃ (Non-working status)
                        • relative Humidity:10% ~ 80% (Working status), 0% ~ 95% (Non-working status)
                        • Ambient Noise: <46dBA SPL
                        • Minimum illumination:5lux
                        • Recommended illumination: >300lux
Certification & Standard: CTA, CQC, CE, RoHS, FCC
